HY-HDI7645 F08 dry inlay Sticker
Dry Inlays,a polyethylene terephthalate (PET) substrate with an RFID chip and antenna bonded to it and then sandwiched with another protective PET lamination layer and delivered in roll form. A fully functional RFID transponder can be used directly or for manufacturing (OEM). It can be embedded in cards, tags, labels, etc. F08 dry inlay has a rectangle shape, giving it dimensions of 75 x 45 mm. It operates at the HF frequency of 13.56 MHz. F08 chip operating at 13.56 MHz, with 1 kB EEPROM memory that widely used for contactless data storage and access applications.

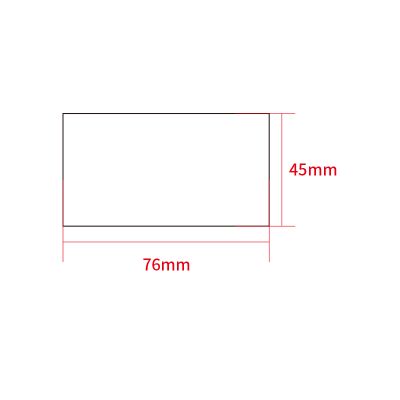

Tag Size:76x45mm
Chip Type:F08
Frequency:13.56 MHZ
Applications/Uses
Product Details
| Specifications | Parameters |
|---|---|
| Operational Frequency | 13.56 MHZ |
| Interface Protocol | IS014443A |
| Chip Type | F08 |
| Memory | 1024 Bit |
| Data Retention | 10 Years |
| Write Cycle Endurance | 100,000 cycles |
| Tag size | 76x45mm |
| Reading Range | 1-5cm |
| Material | PET/PVC/PAPER |
| Packaging | 1000pcs/roll |
| Operating Temperature | -25°C ~ +65°C |
| Storage Temperature | -25°C ~ +55°C |
