HY-HDI A3 NTAG213 dry inlay sticker

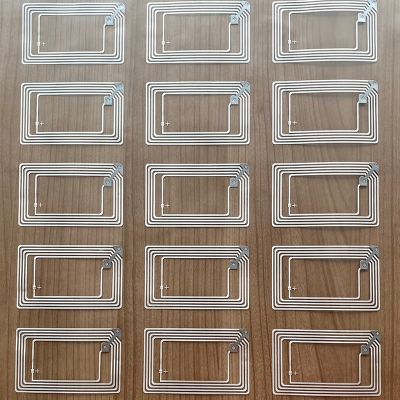

Dry Inlays,a polyethylene terephthalate (PET) substrate with an RFID chip and antenna bonded to it and then sandwiched with another protective PET lamination layer and delivered in roll form. A fully functional RFID transponder can be used directly or for manufacturing (OEM). It can be embedded in cards, tags, labels, etc. NTAG213 dry inlay has a rectangle shape, giving it dimensions of A3. It operates at the HF frequency of 13.56 MHz. The NTAG213 NFC chip has 144 bytes of usable memory which allows for long web links or text data. Like all NTAG213 tags, these are compatible with both Android and iPhone mobile phones.

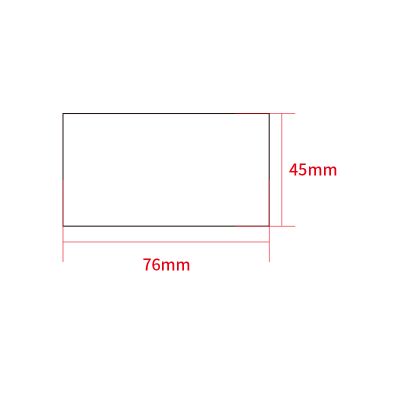

Tag Size:76x45mm
Chip Type:NTAG213
Frequency:13.56 MHZ
Applications/Uses
Product Details
| Specifications | Parameters |
|---|---|
| Operational Frequency | 13.56 MHZ |
| Interface Protocol | IS014443A |
| Chip Type | NTAG213 |
| Memory | 144Byte |
| Data Retention | 10 Years |
| Write Cycle Endurance | 100,000 cycles |
| Tag size | 76x45mm |
| Reading Range | 1-5cm |
| Material | PET/PVC/PAPER |
| Packaging | 21/SHEET |
| Operating Temperature | -25°C ~ +65°C |
| Storage Temperature | -25°C ~ +55°C |
